Giant Trance X 29 3

Overview

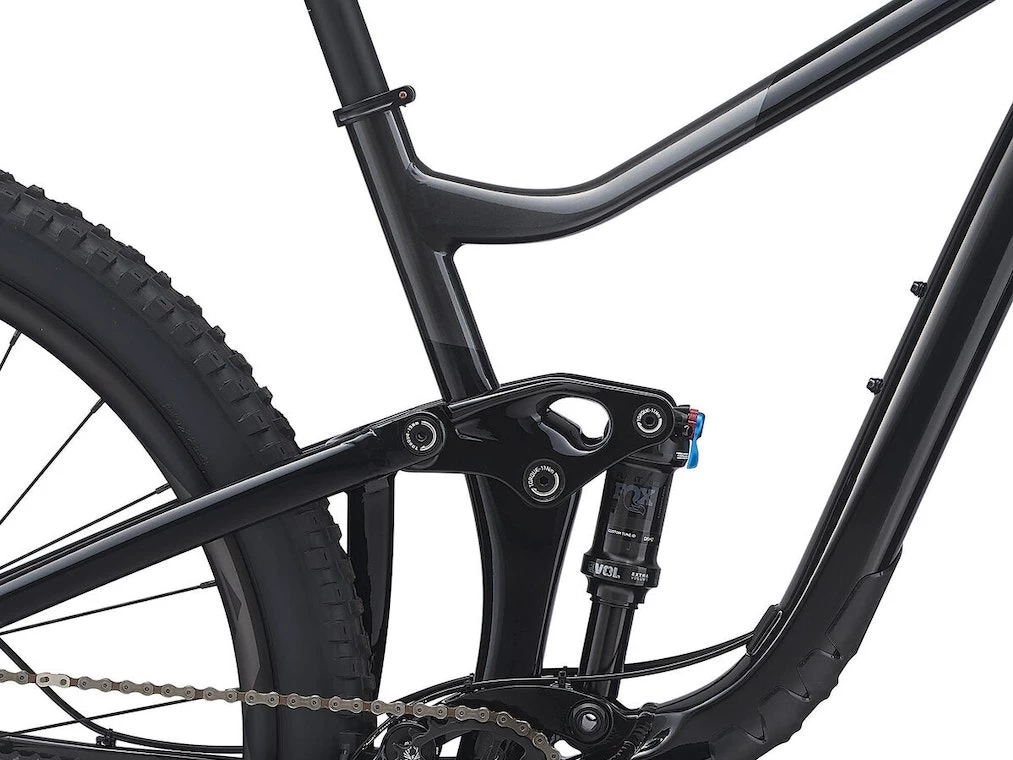

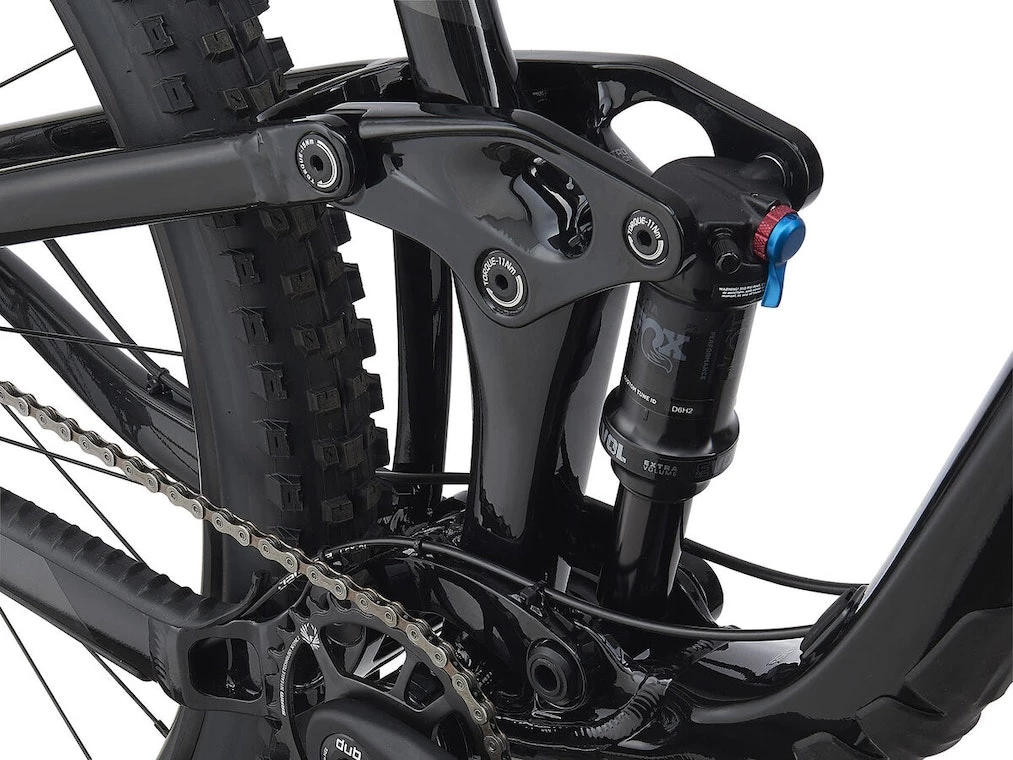

Chunky rock gardens, gnarly roots and steep, technical climbs. The all-new Trance X 29 is for those who consider the hardest section of trail their favorite part of the ride. With longer suspension travel and adjustable geometry, this aluminum trail slayer delivers hard-charging singletrack fun.Engineered to help you ride faster and smoother on the toughest trails, this all-new 29er has a lightweight, strong and stiff aluminum chassis with 29er-specific geometry and a plush ride thanks to its advanced new suspension setup. Longer travel Maestro suspension delivers 135mm of active rear travel that pairs perfectly with a 150mm fork. The Advanced Forged Composite rocker arm has a flip-chip that allows you to adjust frame geometry and tailor the bike’s handling to your riding style and terrain. Choose steeper or slacker headtube/seattube angles and either a 30mm or 40mm bottom bracket drop to adjust the handling for your riding style and terrain. It’s all built around 29-inch wheels and lots of clearance (up to 2.5-inch tires) for maximum control on rugged trails.29er confidence and control29-inch wheels roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tires.Progressive suspensionNew Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features a two-position adjustable Advanced Forged Composite flip-chip equipped upper rocker arm for increased stiffness and strength plus lower overall frame weight.Adjustable frame geometryLightweight ALUXX-SL frameset features adjustable geometry that offers 66.2 or 65.5-degree headtube and 77.9 or 77.2-degree seattube angles, resulting in 30mm or 40mm bottom bracket drop options for aggressive trail configurations.

Tech Specs

Accessories & Extras

Tubeless prepared

Axles

Front: 110 x 15 thru-axle Rear: 148 x 12mm thru-axle

Bottom Bracket

SRAM DUB, press fit

Brake Levers

Shimano MT401

Brakes

Shimano MT420

Cassette/Rear Cogs

SRAM SX Eagle, 11×50

Chain

SRAM

Chainrings

30T

Crankset

SRAM SX Eagle

Fork

RockShox 35 Gold RL, 150mm, 44mm offset, 15×110 Maxle Stealth, custom tuned for Giant

Frame

ALUXX SL-Grade Aluminum front and rear triangles, 135mm Maestro suspension, flip chip

Handlebars

Giant Contact TR35, 780x35mm, 20mm rise

Hubs

Giant Boost, sealed bearing

Pedals

Platform

Rear Derailleur

SRAM SX Eagle

Rear Shock

Fox Float DPS Performance, 185/55, custom tuned for Giant

Rims/Wheels

Giant AM 29, alloy

Saddle

Giant Romero

Seat Post

Giant Contact Switch dropper with remote, 30.9

Shifters

SRAM SX Eagle

Spokes

Sapim

Stem

Giant Contact SL 35

Tires

Front: Maxxis Minion DHF 29 x 2.5″, EXO, TR Rear: Maxxis Dissector 29 x 2.4″, EXO, TR, tubeless

Specifications

Bottom Bracket SRAM DUB PF30 MTB83Brake Levers Shimano XT hydraulic discBrakes Shimano XT hydraulic disc, 160/160mm XT rotorsChain SRAM X01 Eagle, 12-speedCrank Truvativ Stylo C, 34T, Ai offsetExtra 1 Stash Kit (Fabric 8-in-1 Mini Tool and Dynaplug tubeless puncture repair tool), Tubeless valve stemsFork Lefty Ocho, 100mm, Chamber Damper with remote lockout, OppO Spring System, tapered steerer, 55mm offsetFrame All-New, 100mm travel, BallisTec Carbon, Proportional Response Tuned, FlexPivot Chainstay, PF30-83, Tapered Headtube,Speed Release 12mm thru axle, Ai Offset, Stash compatibleGrips ESI Chunky Silicone, 32mm dia.Handlebar Cannondale 1 Flat, Carbon, 31.8mm, 9° back, 760mmHeadset Integrated, 1-1/8 to 1.5″, sealed angular contact bearingsHubs (F) HollowGram Lefty 60 / (R) HollowGram w/DT Swiss Star Ratchet internals, 12x148mmModel Code C24201MModel Name Scalpel Carbon LTDPlatform Rear Cogs SRAM XG-1295, XO1 Eagle, 10-52, 12-speedRear Derailleur SRAM X01 EagleRear Shock Fox Float DPS Performance Elite EVOL, remote lockout, adjustable reboundRims HollowGram 25, Superlight Hi-Impact Carbon, 28h, 25mm IW, tubeless readySaddle Prologo Dimension NDR, Tirox railsSeatpost Cannondale 1, UD Carbon, 31.6 x 400mmShifters SRAM XO Eagle, 12-speedSpokes DT Swiss Competition Race, straight-pullStem Cannondale 1, 7075 Alloy, 1-1/8″, 31.8, 7°Tires (F) Schwalbe Racing Ray Performance, 29 x 2.25″, Addix Compound, tubeless ready, (R) Schwalbe Racing Ralph Performance, 29 x 2.25″, Addix Compound, tubeless readyWheel Sensor Cannondale Wheel SensorWheel Size 29
