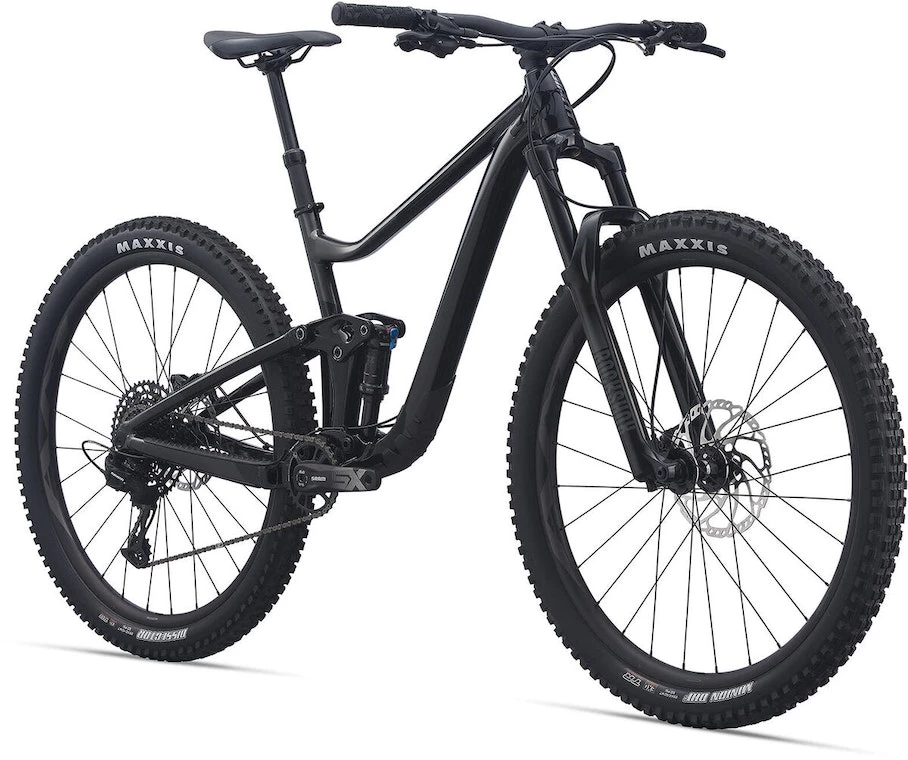

Giant Trance X 29 3

Overview

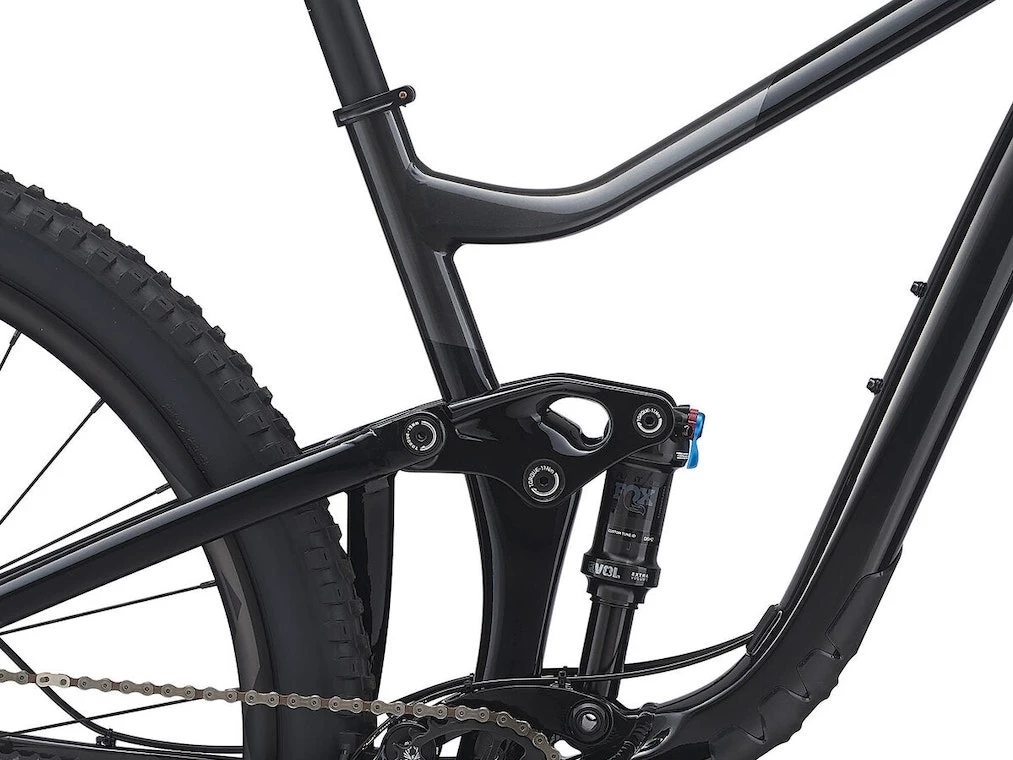

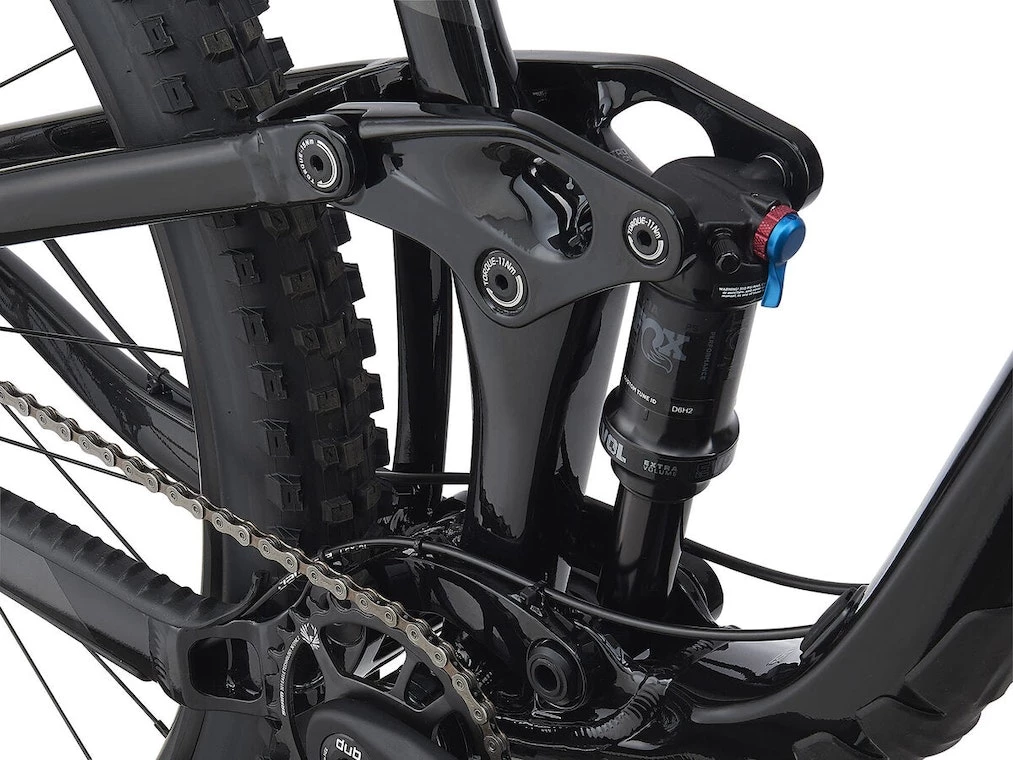

Chunky rock gardens, gnarly roots and steep, technical climbs. The all-new Trance X 29 is for those who consider the hardest section of trail their favorite part of the ride. With longer suspension travel and adjustable geometry, this aluminum trail slayer delivers hard-charging singletrack fun.Engineered to help you ride faster and smoother on the toughest trails, this all-new 29er has a lightweight, strong and stiff aluminum chassis with 29er-specific geometry and a plush ride thanks to its advanced new suspension setup. Longer travel Maestro suspension delivers 135mm of active rear travel that pairs perfectly with a 150mm fork. The Advanced Forged Composite rocker arm has a flip-chip that allows you to adjust frame geometry and tailor the bike’s handling to your riding style and terrain. Choose steeper or slacker headtube/seattube angles and either a 30mm or 40mm bottom bracket drop to adjust the handling for your riding style and terrain. It’s all built around 29-inch wheels and lots of clearance (up to 2.5-inch tires) for maximum control on rugged trails.29er confidence and control29-inch wheels roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tires.Progressive suspensionNew Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features a two-position adjustable Advanced Forged Composite flip-chip equipped upper rocker arm for increased stiffness and strength plus lower overall frame weight.Adjustable frame geometryLightweight ALUXX-SL frameset features adjustable geometry that offers 66.2 or 65.5-degree headtube and 77.9 or 77.2-degree seattube angles, resulting in 30mm or 40mm bottom bracket drop options for aggressive trail configurations.

Tech Specs

Accessories & Extras

Tubeless prepared

Axles

Front: 110 x 15 thru-axle Rear: 148 x 12mm thru-axle

Bottom Bracket

SRAM DUB, press fit

Brake Levers

Shimano MT401

Brakes

Shimano MT420

Cassette/Rear Cogs

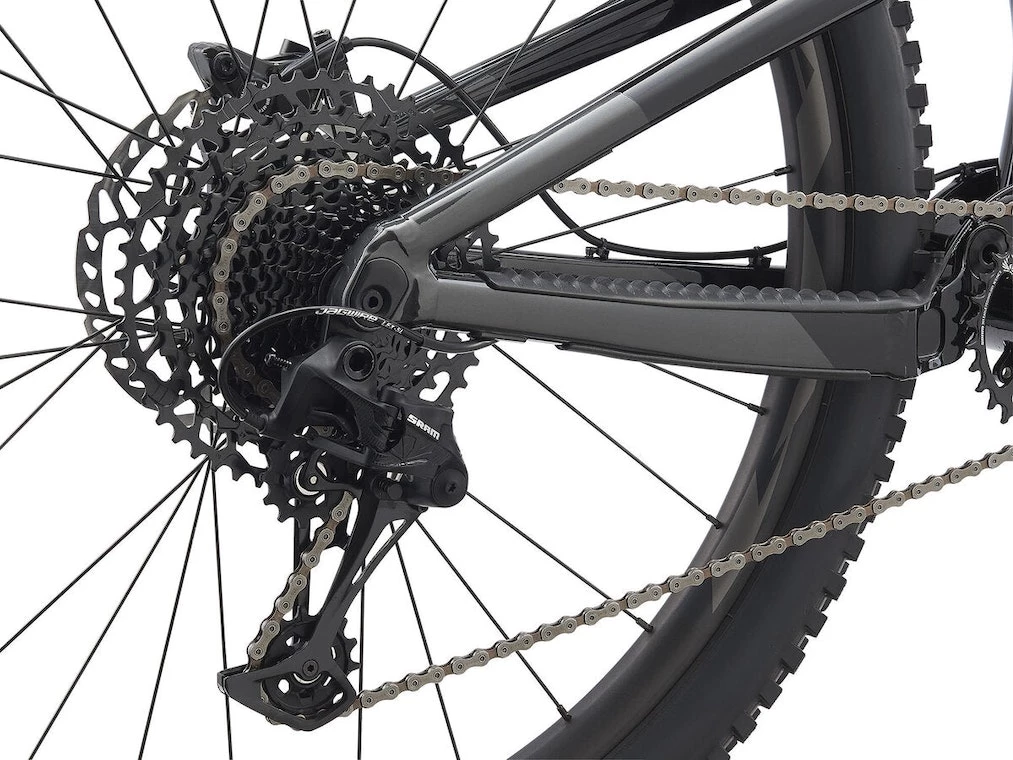

SRAM SX Eagle, 11×50

Chain

SRAM

Chainrings

30T

Crankset

SRAM SX Eagle

Fork

RockShox 35 Gold RL, 150mm, 44mm offset, 15×110 Maxle Stealth, custom tuned for Giant

Frame

ALUXX SL-Grade Aluminum front and rear triangles, 135mm Maestro suspension, flip chip

Handlebars

Giant Contact TR35, 780x35mm, 20mm rise

Hubs

Giant Boost, sealed bearing

Pedals

Platform

Rear Derailleur

SRAM SX Eagle

Rear Shock

Fox Float DPS Performance, 185/55, custom tuned for Giant

Rims/Wheels

Giant AM 29, alloy

Saddle

Giant Romero

Seat Post

Giant Contact Switch dropper with remote, 30.9

Shifters

SRAM SX Eagle

Spokes

Sapim

Stem

Giant Contact SL 35

Tires

Front: Maxxis Minion DHF 29 x 2.5″, EXO, TR Rear: Maxxis Dissector 29 x 2.4″, EXO, TR, tubeless

Specifications

Accessories & ExtrasTubeless preparedAxlesFront: 110 x 15 thru-axle, Rear: 148 x 12mm thru-axleBottom BracketSRAM DUB, press fitBrake LeversShimano MT401BrakesShimano MT420Cassette/Rear CogsSRAM SX Eagle, 11x50ChainSRAMChainrings30TCranksetSRAM SX EagleForkRockShox 35 Gold RL, 150mm, 44mm offset, 15×110 Maxle Stealth, custom tuned for GiantFrameALUXX SL-Grade Aluminum front and rear triangles, 135mm Maestro suspension, flip chipHandlebarsGiant Contact TR35, 780x35mm, 20mm riseHubsGiant Boost, sealed bearingPedalsPlatformRear DerailleurSRAM SX EagleRear ShockFox Float DPS Performance, 185/55, custom tuned for GiantRims/WheelsGiant AM 29, alloySaddleGiant RomeroSeat PostGiant Contact Switch dropper with remote, 30.9ShiftersSRAM SX EagleSpokesSapimStemGiant Contact SL 35TiresFront: Maxxis Minion DHF 29 x 2.5″, EXO, TR, Rear: Maxxis Dissector 29 x 2.4″, EXO, TR, tubeless
