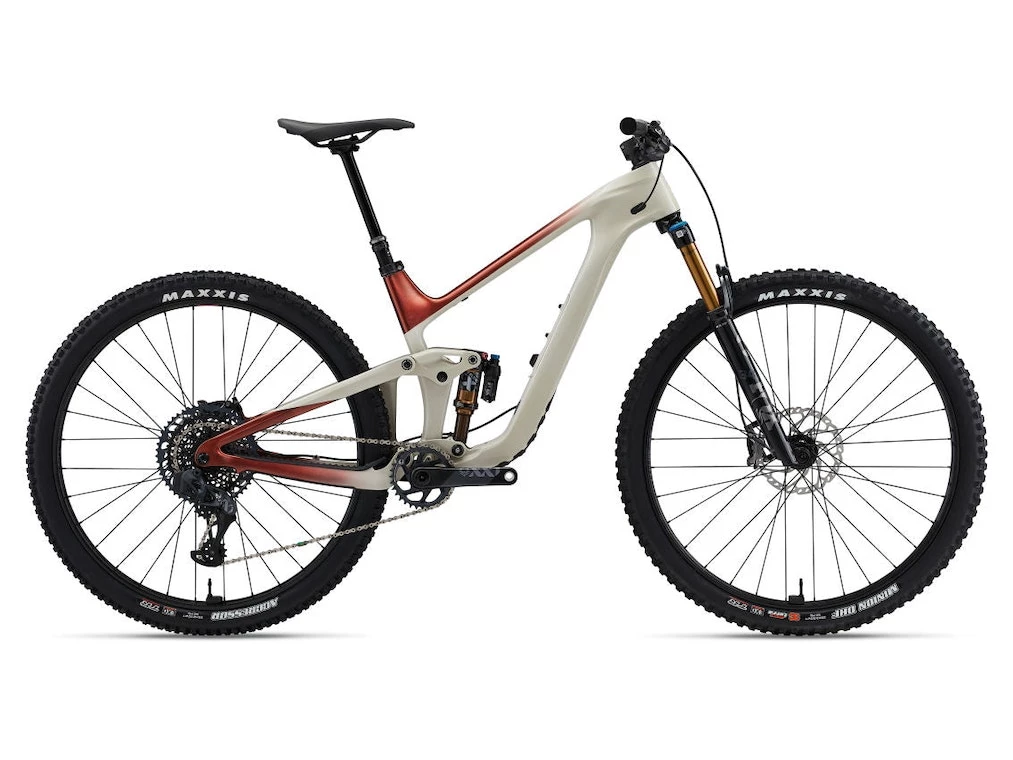

Giant Trance Advanced Pro 29 0

Overview

Shred hard and shred fast with this lively 29er. It’s built on an all-new full-composite frame with adjustable geometry, giving you smooth control to blitz technical trails at speed.

Tech Specs

Bottom Bracket

SRAM DUB, press fit

Brake Levers

Shimano XTR BL-M9120

Brakes

Shimano XTR BR-MT9120, hydraulic, Shimano RT-66 rotors [F]180mm, [R]180mm

Cassette

SRAM XG 1295, 12-52

Chain

SRAM X01 Eagle

Colors

Pulp Gray / Terracotta / Black Chrome

Crankset

SRAM XX1 Eagle DUB SL, 30t S:165mm, M:170mm, L:170mm, XL:170mm

Extras

tubeless prepared, 2.6″ max tire size, 34t max chainring size, MRP V3 Carbon chain guide

Fork

Fox 34 Factory, 130mm, GRIP 2 damper, Boost 15×110 Kabolt, 44mm offset, custom tuned for Giant

Frame

Advanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip, 12x148mm thru-axle

Front Derailleur

N/A

Grips

Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm

Handlebar

Giant Contact SLR Integrated, composite, 780x35mm

Hubs

Zipp 3ZERO MOTO 29 carbon

Pedals

N/A

Rear Derailleur

SRAM XX1 Eagle AXS

Rims

Zipp 3ZERO MOTO 29 carbon

Saddle

Giant Romero SL

Seatpost

TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm

Shifters

SRAM XX1 Eagle AXS Rocker Paddle, 1×12

Shock

Fox Float X Factory, lockout, 185/50, custom tuned for Giant

Sizes

S, M, L, XL

Spokes

Zipp 3ZERO MOTO 29 carbon

Stem

Giant Contact SLR Integrated 35 adjustable 40/45/50mm

Tires

[F] Maxxis Minion DHF 29×2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29×2.5, EXO, TR, tubeless

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
