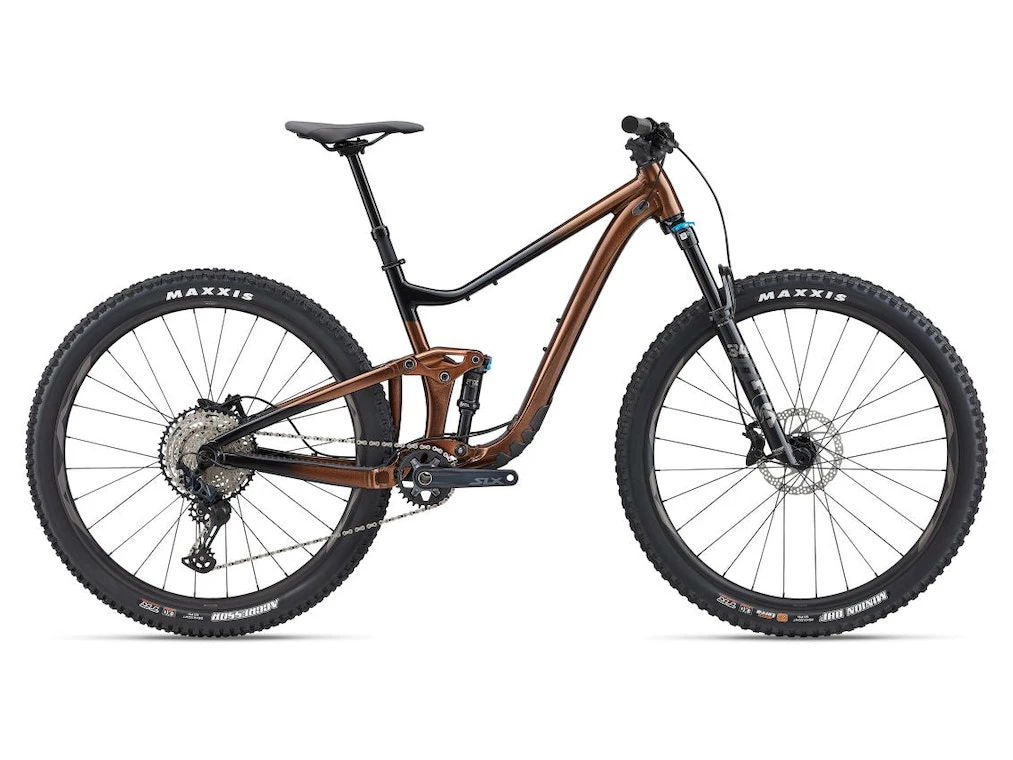

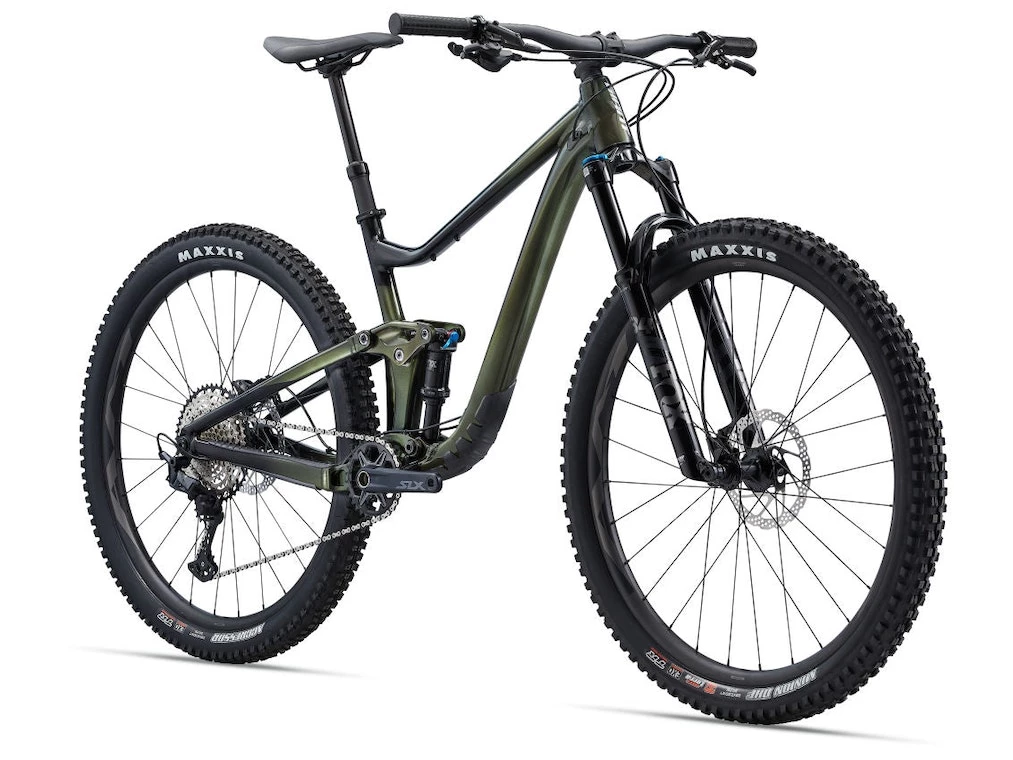

Giant Trance 29 1

Overview

Turn up the heat on technical trails, and do it with more confidence and control. Featuring updated suspension and adjustable geometry, this feisty 29er adapts to the terrain.

Tech Specs

Bottom Bracket

Shimano, press fit

Brake Levers

Shimano BL-MT501

Brakes

Shimano Deore BR-MT520, hydraulic, Shimano RT-56 rotors [F]180mm, [R]180mm

Cassette

Shimano SLX, 10×51

Chain

KMC X-12

Colors

Phantom Green / Black / Chrome, Hematite / Black / Chrome

Crankset

Shimano SLX, 30t S:165mm, M:170mm, L:170mm, XL:170mm

Extras

tubeless prepared, 2.6″ max tire size, 34t max chainring size

Fork

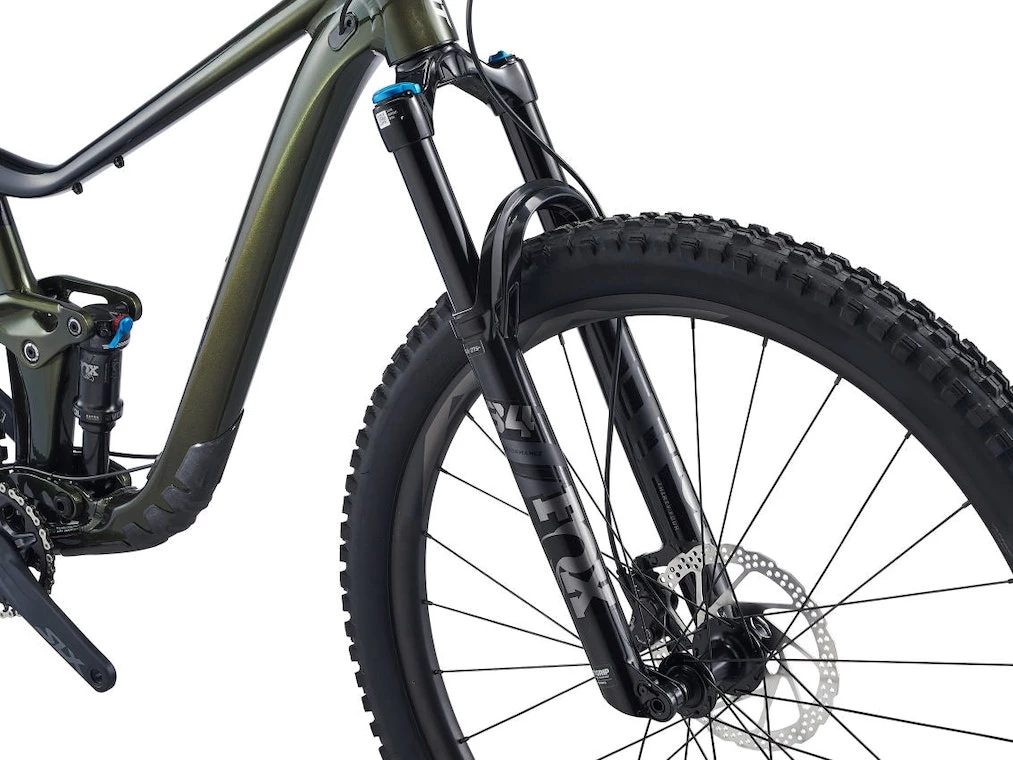

Fox 34 Performance, 130mm, GRIP damper, Boost 15×110 Kabolt, 44mm offset, custom tuned for Giant

Frame

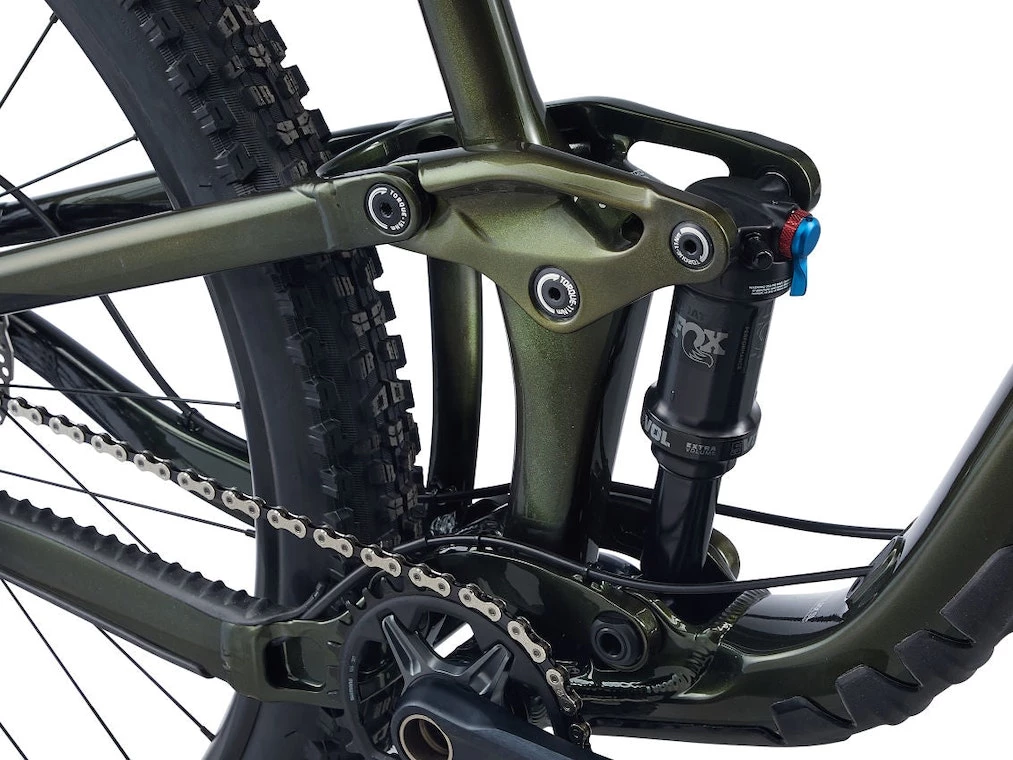

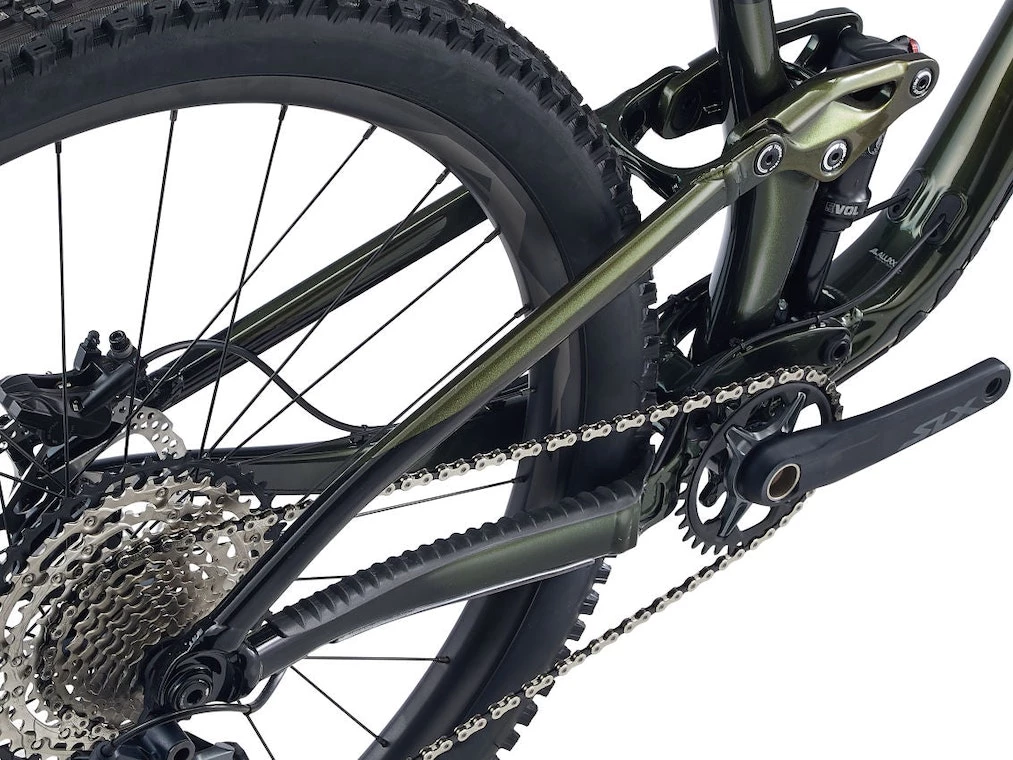

ALUXX SL-Grade Aluminum front and rear triangles, 120mm Maestro suspension, flip chip, 12x148mm thru-axle

Front Derailleur

N/A

Grips

Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm

Handlebar

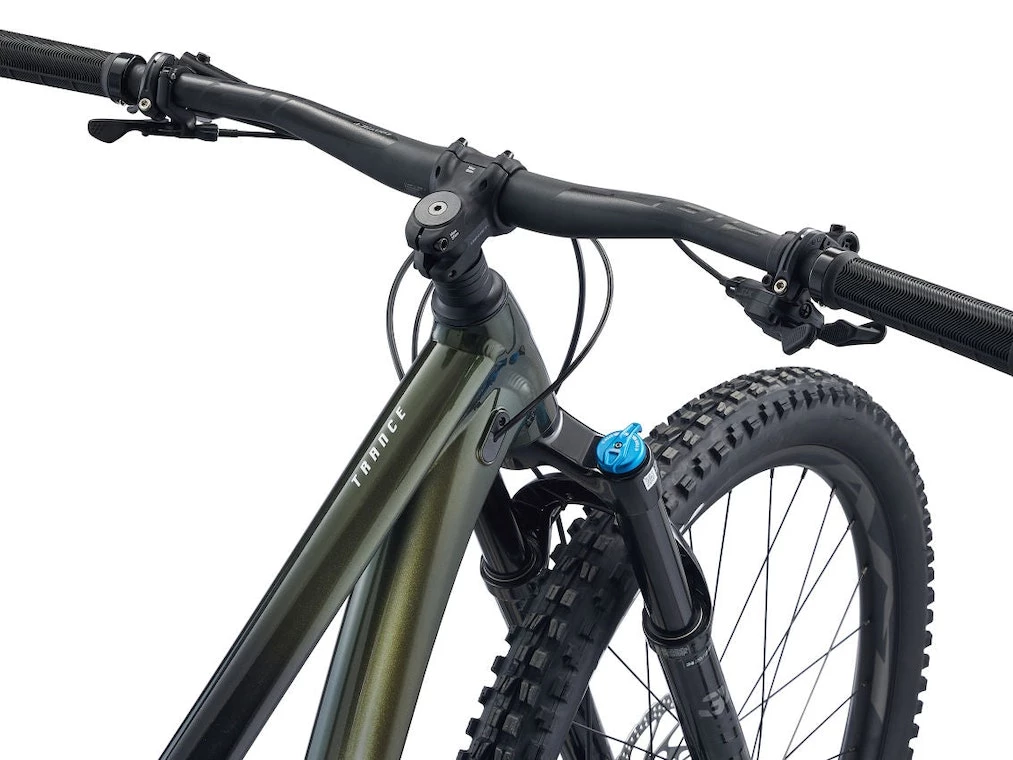

Giant Contact TR35, 780x35mm

Hubs

alloy, sealed

Pedals

N/A

Rear Derailleur

Shimano SLX RD-M7100

Rims

Giant AM 29 tubeless ready sleeve-joint rim, 30mm inner width

Saddle

Giant Romero

Seatpost

Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm

Shifters

Shimano SLX SL-M7100, 1×12

Shock

Fox Float DPS Performance, 185/50, custom tuned for Giant

Sizes

S, M, L, XL

Spokes

Sapim

Stem

Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm

Tires

[F] Maxxis Minion DHF 29×2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29×2.5, EXO, TR, tubeless

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
