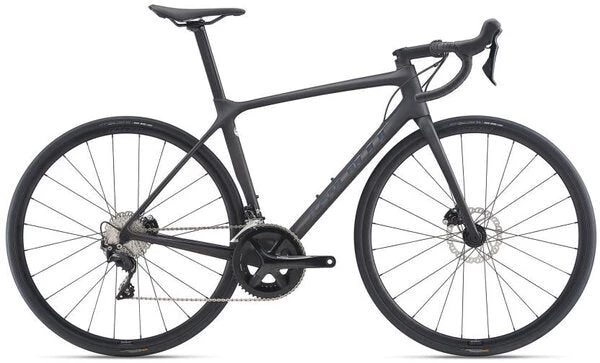

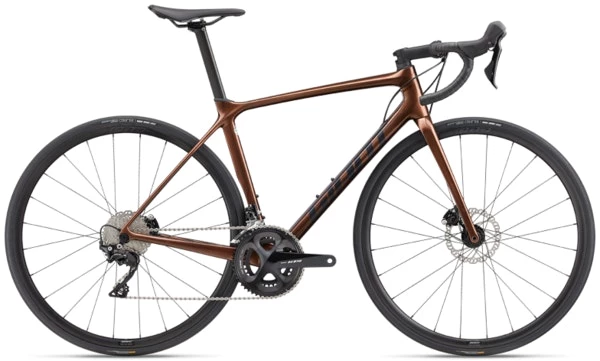

Giant TCR Advanced 2 Disc-Pro Compact

Overview

Training, racing, pushing it to the limit. Whether you’re attacking the field or digging deep for a new PR, the new TCR Advanced Disc is lighter, stiffer, and faster with strategic aero tube shaping, added tire clearance, and integrated disc brake technology.Reengineered with updated aerodynamic tube shaping in the headtube, downtube, and fork, plus added clearance for larger diameter tires (up to 32mm), the new TCR Advanced Disc delivers outstanding on-the-road efficiency. The Variant seatpost adds just enough compliance to give it a balanced, race-tuned feel on the road. And with its integrated disc-brake technology, including flat mounts and 12mm front and rear thru-axles, it’s an all-weather, all-conditions race machine to keep you at the front of the pack.Class-leading efficiency- With an impressive stiffness-to-weight ratio and updated aero tube shaping, this frameset is engineered to give road racers and riders superior climbing capabilities, aerodynamic efficiency, and sprint stiffness for race-winning performance.Advanced aerodynamics- This is where the TCR’s most quantifiable gains can be found compared to previous-generation models. Every tube shape was analyzed, engineered, and tested to create an overall structure with significantly lower drag at a wider range of yaw angles. The result is a TCR that’s faster than ever in sprints and solo situations.Total control- Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.- Frame: Advanced-Grade Composite, disc- Fork: Advanced-Grade Composite, OverDrive steerer, disc- Wheels: Giant PR-2 Disc wheelset- Shifters: Shimano 105- Crankset: Shimano RS-510, 36/52

Tech Specs

Axles

Front: 100 x 12mm thru-axle Rear: 142 x 12mm thru-axle

Bottom Bracket

Shimano, press fit

Brake Levers

Shimano 105 hydraulic

Brakes

Shimano 105 hydraulic

Cassette/Rear Cogs

Shimano 105, 11×30

Chain

KMC X11EL-1

Chainrings

36/52T

Crankset

Shimano RS-510

Fork

Advanced-Grade Composite, OverDrive steerer, disc

Frame

Advanced-Grade Composite, disc

Front Derailleur

Shimano 105

Handlebars

Giant Contact

Hubs

Giant PR-2 Disc wheelset, 12mm thru-axle

Rear Derailleur

Shimano 105

Rims/Wheels

Giant PR-2 Disc wheelset

Saddle

Giant Approach

Seat Post

Giant Variant, composite

Shifters

Shimano 105

Spokes

Giant PR-2 Disc wheelset

Stem

Giant Contact

Tires

Giant Gavia Course 1, tubeless, 700x28mm (25c), folding

Specifications

Axles Front 100 x 12mm thru-axle , Rear 142 x 12mm thru-axleBottom Bracket Shimano, press fitBrake Levers Shimano 105 hydraulicBrakes Shimano 105 hydraulicCassette/Rear Cogs Shimano 105, 11x30Chain KMC X11EL-1Chainrings 36/52TCrankset Shimano RS-510Fork Advanced-Grade Composite, OverDrive steerer, discFrame Advanced-Grade Composite, discFront Derailleur Shimano 105Handlebars Giant ContactHubs Giant PR-2 Disc wheelset, 12mm thru-axleRear Derailleur Shimano 105Rims/Wheels Giant PR-2 Disc wheelsetSaddle Giant ApproachSeat Post Giant Variant, compositeShifters Shimano 105Spokes Giant PR-2 Disc wheelsetStem Giant ContactTires Giant Gavia Course 1, tubeless, 700x28mm (25c), folding
