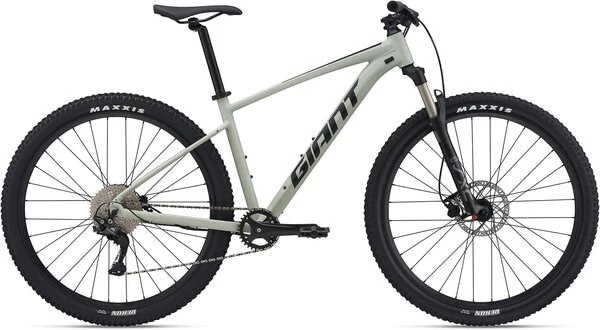

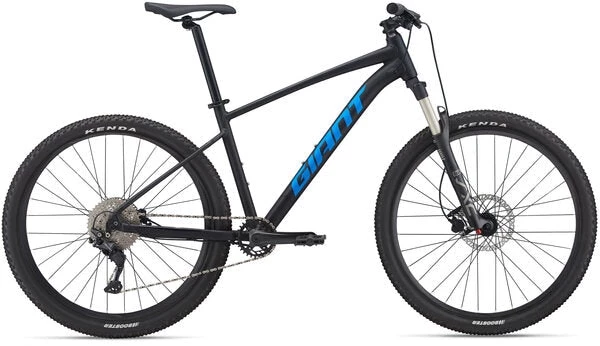

Giant Talon 1

Overview

Push the pace on climbs, let loose on the descents. This aluminum hardtail gives you a feel for the trail with balanced, confident handling and a plush suspension fork. Built on a lightweight ALUXX aluminum frame that features classic hardtail design and the balanced riding characteristics of either larger diameter 29-inch or 27.5-inch wheels, Talon is a great choice for XC and trail riding. The frame geometry is specifically designed to adapt to its respective wheel size and either an 80mm or 100mm suspension fork (depending on frame size). It’s a confident ride that’s perfect for ambitious riders who want to take their off-road skills to the next level. Wheel size:- Size X-Small: 27.5-inch- Sizes Small – Medium: 27.5-inch or 29-inch- Sizes Large – XX-Large: 29-inch

Tech Specs

Accessories & Extras

2.4″ max tire size

Bottom Bracket

cartridge

Brake Levers

Tektro HDC M275

Brakes

Tektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mm

Cassette/Freewheel

Shimano Deore M4100, 11×42

Chain

KMC X10

Crankset

ProWheel Charm, 30t (27.5) or 32t (29)

Fork

SXC32-2 RL, air spring, QR, alloy steerer XS: 80mm travel (27.5), S: 80mm travel (27.5) / 100mm travel (29), M-XXL: 100mm travel

Frame

ALUXX-Grade Aluminum, disc

Handlebars

Giant Connect Trail, 31.8mm

Hubs

alloy, sealed bearing

Pedals

platform

Rear Derailleur

Shimano Deore M5120

Rims

Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width

Saddle

Giant custom

Seatpost

Giant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm travel (29) L: 375mm (27.5) / 375mm (29) XL: 375mm (29) XXL: 375mm (29)

Shifters

Shimano Deore M4100, 1×10

Spokes

stainless, 14g

Stem

Giant Sport, 7-degree

Tape/Grips

Giant Sole-O

Tires

Kenda Booster 27.5 or 29×2.4″, wire bead

Specifications

Accessories & Extras2.4″ max tire sizeBottom BracketcartridgeBrake LeversTektro HDC M275BrakesTektro HDC M275, hydraulic, Tektro rotors [F]180mm, [R]160mmCassette/FreewheelShimano Deore M4100, 11x42ChainKMC X10CranksetProWheel Charm, 30t (27.5) or 32t (29)ForkSXC32-2 RL, air spring, QR, alloy steerer XS: 80mm travel (27.5), S: 80mm travel (27.5) / 100mm travel (29), M-XXL: 100mm travelFrameALUXX-Grade Aluminum, discHandlebarsGiant Connect Trail, 31.8mmHubsalloy, sealed bearingPedalsplatformRear DerailleurShimano Deore M5120RimsGiant GX03V 29 or 27.5, alloy, double wall, 21mm inner widthSaddleGiant customSeatpostGiant Sport, 30.9 XS: 300mm (27.5) S: 300mm (27.5) / 375mm (29) M: 375mm (27.5) / 375mm travel (29) L: 375mm (27.5) / 375mm (29) XL: 375mm (29) XXL: 375mm (29)ShiftersShimano Deore M4100, 1x10Spokesstainless, 14gStemGiant Sport, 7-degreeTape/GripsGiant Sole-OTiresKenda Booster 27.5 or 29×2.4″, wire bead
