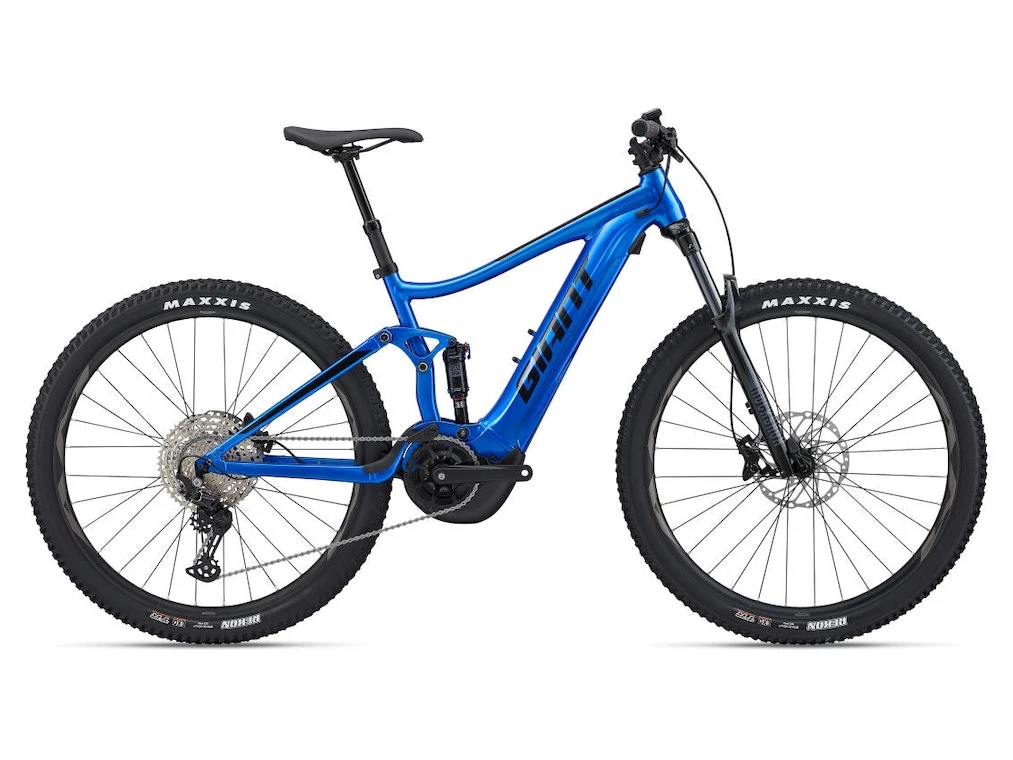

Giant Stance E + 1

Overview

Steep climbs, technical descents, longer days on the trail. With a smooth suspension setup and a seamless boost of pedaling support, this E-bike gives you the power and technology to ride the trails you dream about.

Tech Specs

Battery

EnergyPak Smart 625Wh

Bottom Bracket

–

Brake Levers

Shimano MT401

Brakes

Shimano MT420, 4-piston, hydraulic disc, 203mm

Carrier

–

Cassette

Shimano CS-M6100-12, 10-51T, 12-speed

Chain

KMC e.12 Sport, e-bike optimized

Colors

Color A: Sapphire, Color B: Grenadine

Controller

RideControl Dash, full color LCD screen

Crankset

Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (S:160, M/L:165, XL:170)

Display

RideControl Dash, full color LCD screen

Fork

RockShox Recon Silver RL, 130mm travel, Lockout, 110x15mm Boost, Maxle Stealth, e-MTB optimized

Frame

ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand Mount

Grips

Giant Tactal single lock-on

Handlebar

Giant Connect TR Riser 31.8x780mm

Hubs

Shimano MT410 Boost / MT401, Center-Lock, [F] 110×15 [R] 141mm QR Micro-Spline Drive Body

Lighting

–

Motor

SyncDrive Sport, 70Nm, powered by Yamaha

Pedals

Aluminum Platform

Rear Derailleur

Shimano Deore, 12-speed

Rims

Giant AM 29″, Tubeless ready, 30mm inner width

Saddle

Giant Sport

Seatpost

Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)

Shifters

Shimano Deore, 12-speed

Shock

RockShox Monarch RT, High Volume, 184x44mm, custom tuned

Sizes

S, M, L, XL

Spokes

Stainless Steel

Stem

Giant Contact

Tires

Maxxis Rekon 29×2.4″ foldable, 60tpi, EXO, Tubeless Ready

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Specifications

BatteryEnergyPak Smart 625WhBottom Bracket-Brake LeversShimano MT401BrakesShimano MT420, 4-piston, hydraulic disc, 203mmCarrier-CassetteShimano CS-M6100-12, 10-51T, 12-speedChainKMC e.12 Sport, e-bike optimizedColorsColor A: Sapphire, Color B: GrenadineControllerRideControl Dash, full color LCD screenCranksetForged Alloy minimal Q-factor, 36T Steel Direct Mount ring (S:160, M/L:165, XL:170)DisplayRideControl Dash, full color LCD screenForkRockShox Recon Silver RL, 130mm travel, Lockout, 110x15mm Boost, Maxle Stealth, e-MTB optimizedFrameALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand MountGripsGiant Tactal single lock-onHandlebarGiant Connect TR Riser 31.8x780mmHubsShimano MT410 Boost / MT401, Center-Lock, [F] 110×15 [R] 141mm QR Micro-Spline Drive BodyLighting-MotorSyncDrive Sport, 70Nm, powered by YamahaPedalsAluminum PlatformRear DerailleurShimano Deore, 12-speedRimsGiant AM 29″, Tubeless ready, 30mm inner widthSaddleGiant SportSeatpostGiant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)ShiftersShimano Deore, 12-speedShockRockShox Monarch RT, High Volume, 184x44mm, custom tunedSpokesStainless SteelStemGiant ContactTiresMaxxis Rekon 29×2.4″ foldable, 60tpi, EXO, Tubeless ReadyWeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
