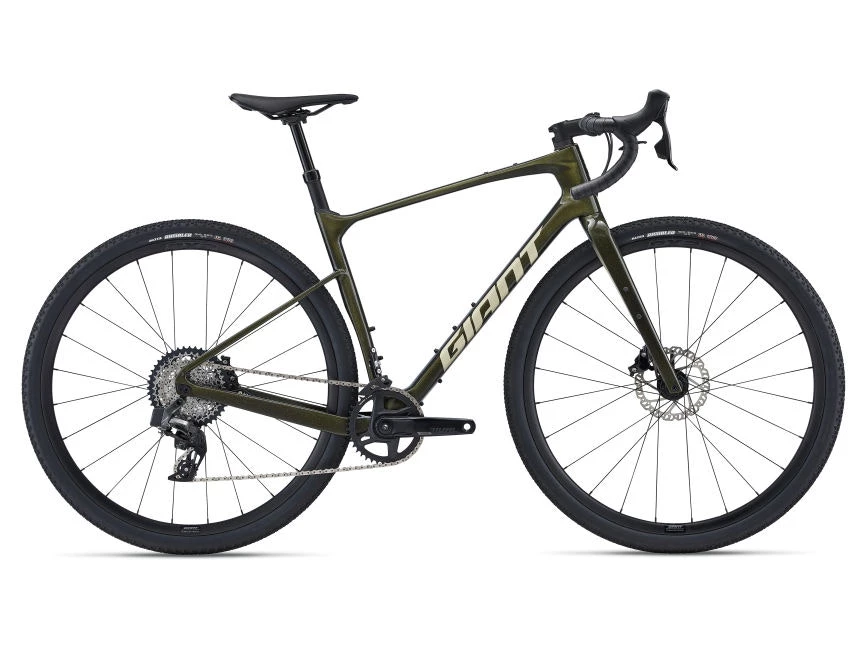

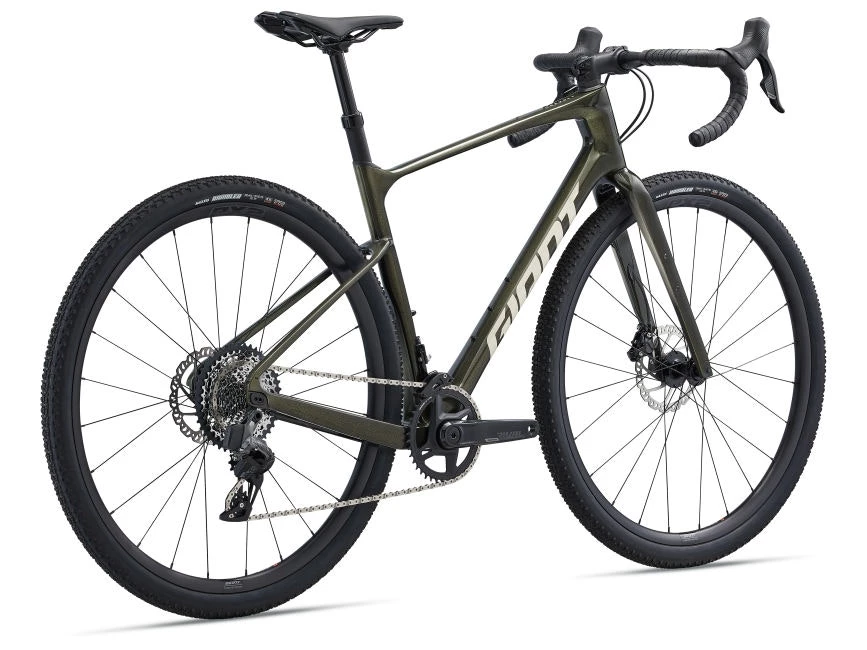

Giant Revolt Advanced 1 2022

FAST GRAVEL, ROUGH GRAVEL, PAVEMENT OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. A NEW COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

Fast and light
New Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing.

Tuned compliance
New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

Frame : Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork : Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock : N/A
Handlebar : Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips : Stratus Lite 3.0
Stem : Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost : Giant Contact Switch, dropper, 30.9mm XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm
Saddle : Giant Approach
Pedals : N/A
Shifters : SRAM Rival eTap AXS, 2×12
Front Derailleur : N/A
Rear Derailleur : SRAM Rival eTap AXS XPLR
Brakes : SRAM Rival eTap AXS hydraulic, Giant MPH rotors [F]160mm, [R]140mm
Brake Levers : SRAM Rival eTap AXS hydraulic
Cassette : SRAM Rival, 12-speed, 10×44
Chain : SRAM Rival D1
Crankset : SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket : SRAM DUB, press fit
Rims : Giant P-X2 Disc wheelset
Hubs : Giant P-X2 Disc wheelset
Spokes : Giant P-X2 Disc wheelset
Tires : Maxxis Rambler, 700x45c, tubeless
Extras : Giant 1x chain guide, tubeless prepared, 53mm max tire size in “long” flip chip position, 42mm max tire size in “short” flip chip position
Weight : The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
