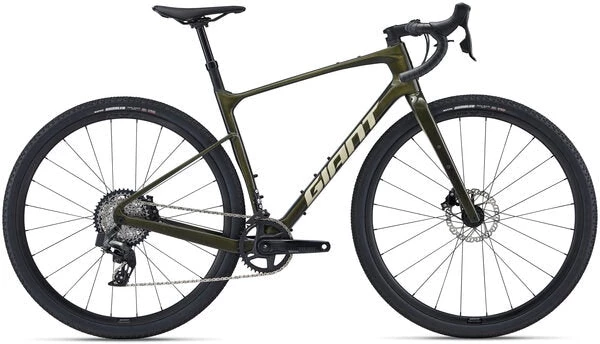

Giant Revolt Advanced 1

Overview

Fast gravel, rough gravel, pavement or dirt. However you choose to roll, this bike does it all. A new composite frameset and adjustable wheelbase make it more capable than ever. With a lightweight Advanced-grade composite frame that’s engineered for compliance, Revolt Advanced lets you push your limits on variable terrain. A composite fork eats up bumps, and the D-Fuse seatpost and handlebar absorb shocks and vibrations. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or a 30.9mm round or dropper post. Details including a smart mount system for racks and accessories give you a head start on any gravel riding mission.

Tech Specs

Accessories & Extras

Giant 1x chain guide, tubeless prepared, 53mm max tire size in “long” flip chip position, 42mm max tire size in “short” flip chip position

Bottom Bracket

SRAM DUB, press fit

Brake Levers

SRAM Rival eTap AXS hydraulic

Brakes

SRAM Rival eTap AXS hydraulic, Giant MPH rotors [F]160mm, [R]140mm

Cassette/Freewheel

SRAM Rival, 12-speed, 10×44

Chain

SRAM Rival D1

Crankset

SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Fork

Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Frame

Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout

Handlebars

Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Hubs

Giant P-X2 Disc wheelset

Pedals

Sold Separately

Rear Derailleur

SRAM Rival eTap AXS XPLR

Rims

Giant P-X2 Disc wheelset

Saddle

Giant Approach

Seatpost

Giant Contact Switch, dropper, 30.9mm XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm

Shifters

SRAM Rival eTap AXS, 1×12

Spokes

Giant P-X2 Disc wheelset

Stem

Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Tape/Grips

Stratus Lite 3.0

Tires

Maxxis Rambler, 700x45c, tubeless
