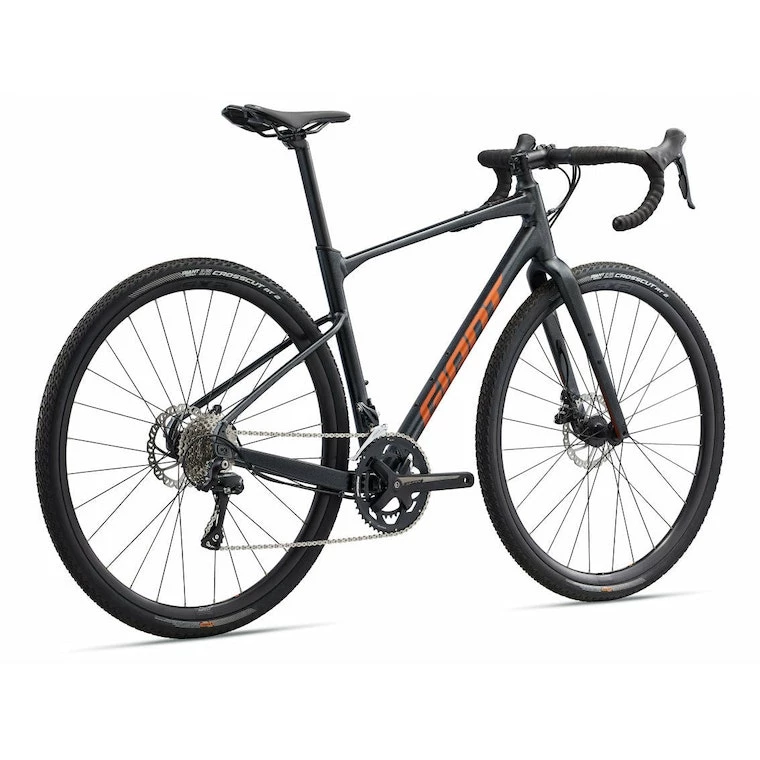

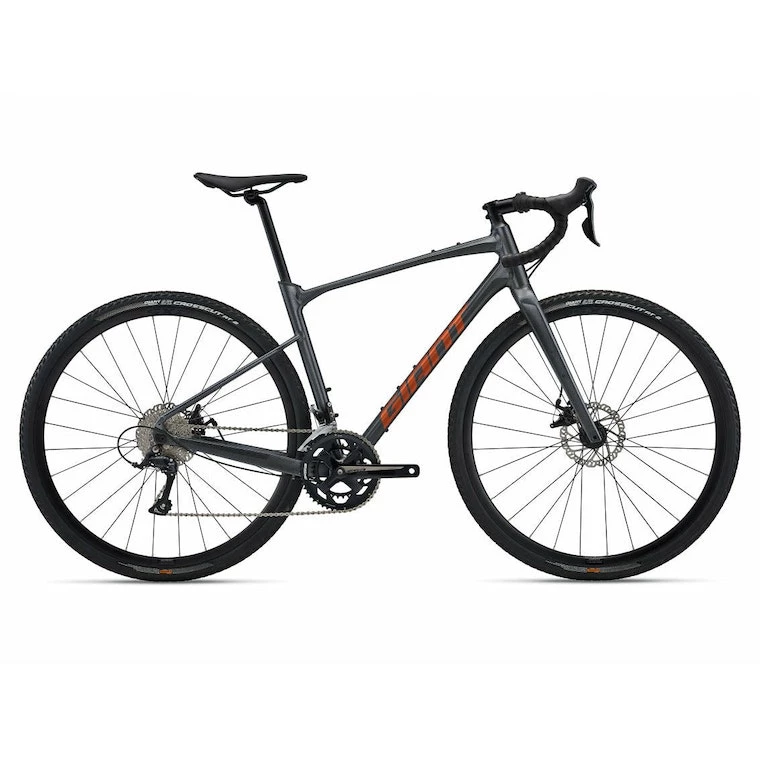

Giant Revolt 2 Disc Gravel Bike

Ride roads, gravel or dirt this all-new aluminum all-rounder, the Giant Revolt 2 Disc Gravel Bike. A composite fork gives the Giant Revolt 2 Disc Gravel Bike a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.



Confident handling – Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned Compliance – New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain – A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.



Specs





Frame – ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout

Fork – Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Shock – N/A

Handlebar – Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Grips – cork tape with gel

Stem – Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seatpost – Giant D-Fuse, alloy, 14mm offset

Saddle – Giant Approach

Pedals – N/A

Shifters – Shimano Sora, 2×9

Front Derailleur – Shimano Sora

Rear Derailleur – Shimano Sora, long cage

Brakes – Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm

Brake Levers – Shimano Sora

Cassette – Shimano HG400, 11×34

Chain – KMC X9 with Missing Link

Crankset – FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket – cartridge

Rims – Giant S-X2 Disc wheelset

Hubs – Giant S-X2 Disc wheelset

Spokes – Giant S-X2 Disc wheelset

Tires – Giant CrossCut AT 2, 700x38c, tubeless

Specifications subject to change without notice
